The units

From the marquee to the logistics hall.

Four mobile units, from 13,000 to 23,000 m³/h, moved from one area to another, and nine fixed units, from 20,000 to 60,000 m³/h, for permanent duty. The specifications below come from the manufacturer's data sheets and catalogue; the full data sheet for the model chosen is handed over with the survey.

Mobile format

Mobile unit

On castors, movable from one workstation to another.

For workshops, marquees and work areas that change with the season. Four models, four different machines: air flow, tank and footprint differ from one unit to the next. All are on castors, run from a single-phase 230 V socket and are financed through ZKB leasing.

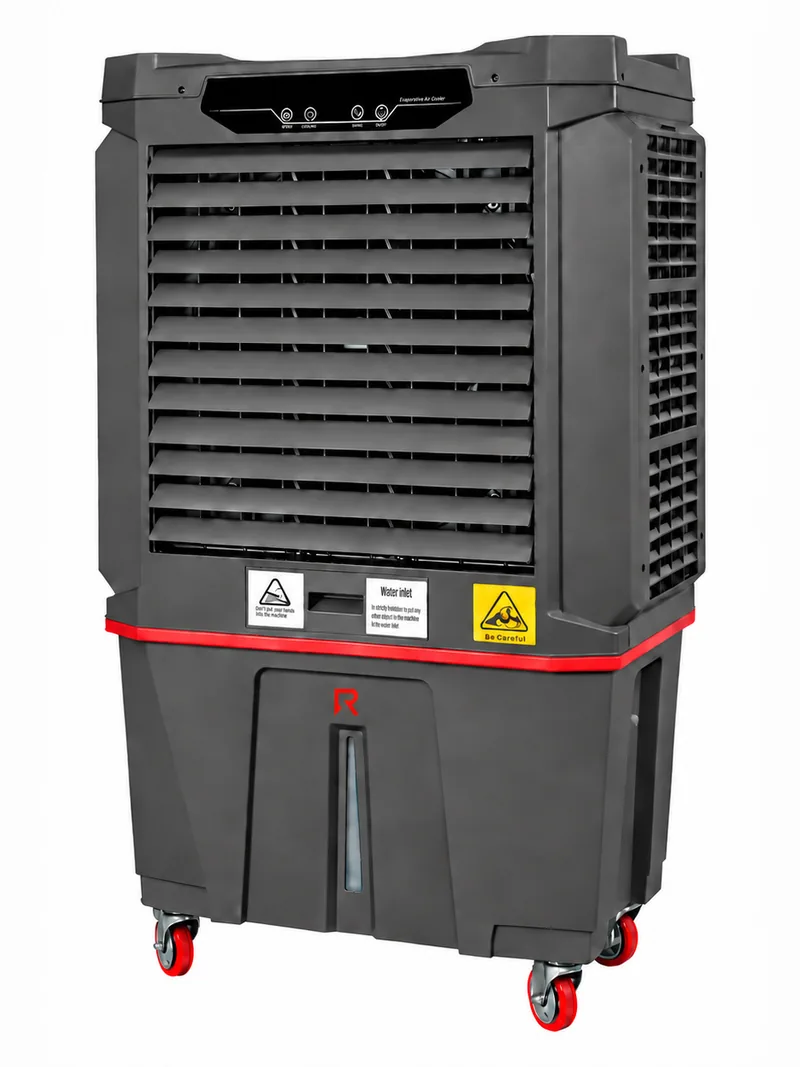

RS-A13C

13,000 m³/h

Power supply: 230 V single-phase, 50 Hz · 4.1 A
Power: 0.6 kW
Tank: 145 l
Water use: not stated
Fan speeds: 6 speeds
Noise: < 72 dB(A)
Weight: 50 kg
Dimensions (mm): 915 × 545 × 1,525

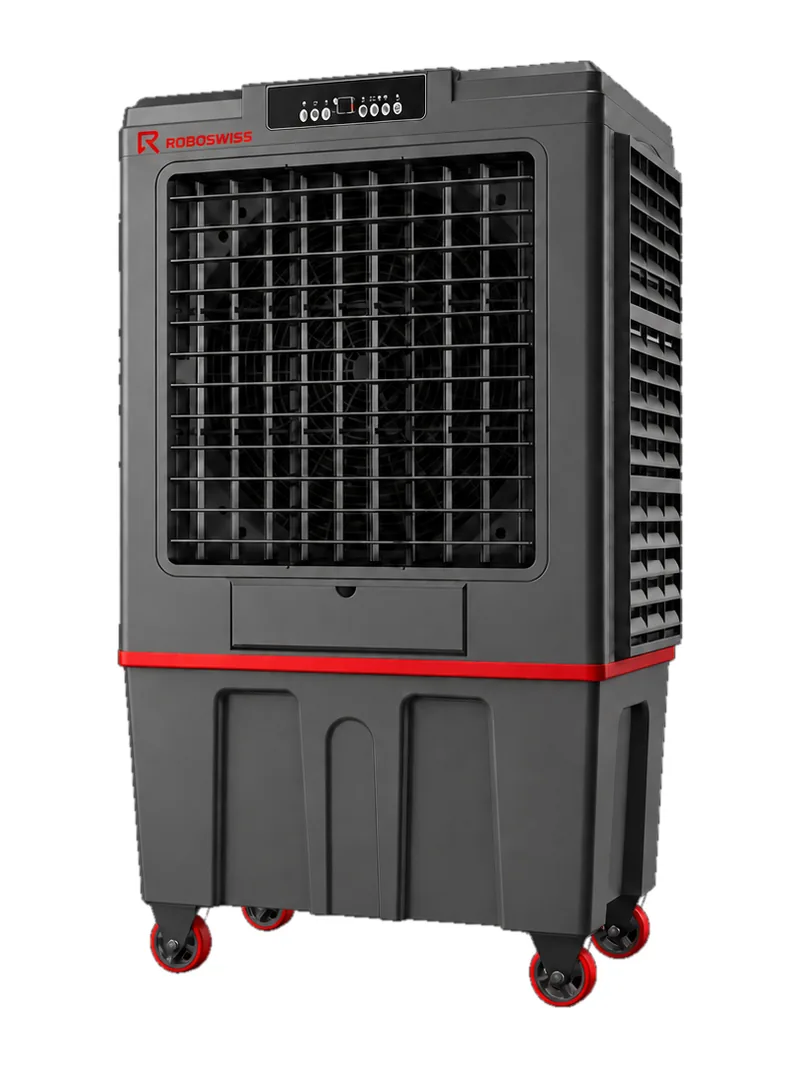

RS-A15C

15,000 m³/h

Power supply: 230 V single-phase, 50 Hz · 3.4 A
Power: 0.75 kW
Tank: 150 l
Water use: 18 l/h
Fan speeds: to be confirmed
Noise: to be confirmed
Weight: 44 kg
Dimensions (mm): 920 × 580 × 1,510

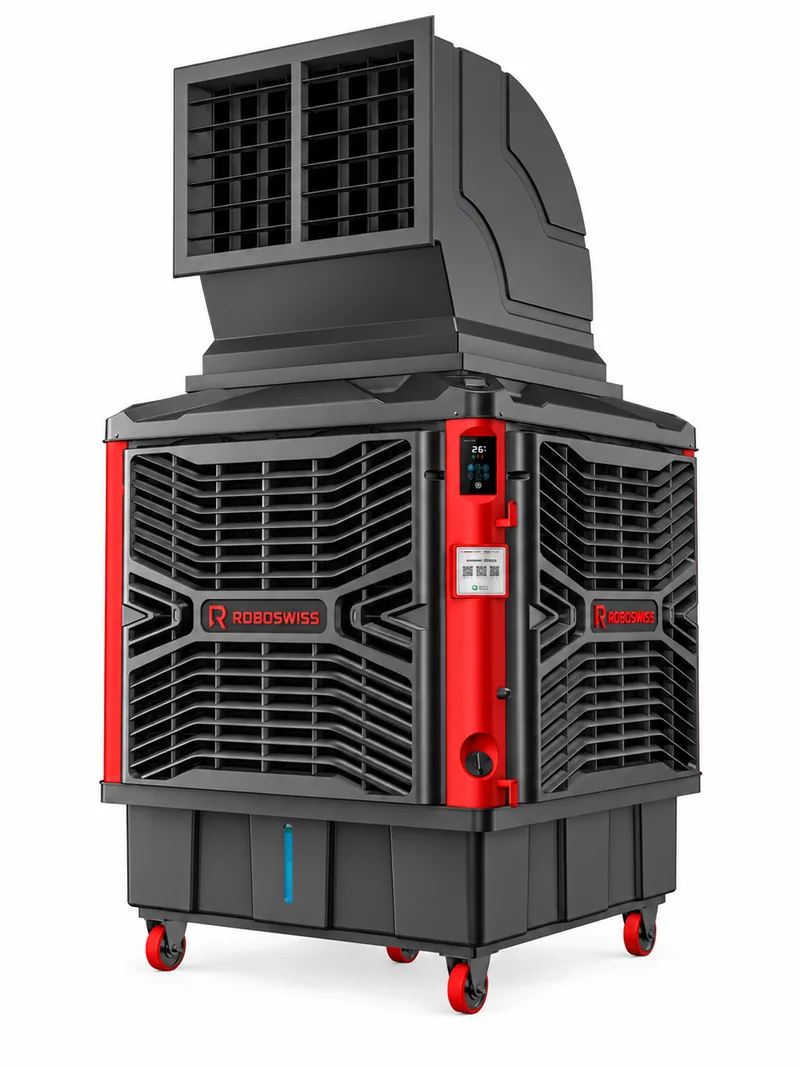

RS-A20C

20,000 m³/h

Power supply: 230 V single-phase, 50 Hz · 4.7 A
Power: 1.1 kW
Tank: 300 l
Water use: 65 l/h
Fan speeds: Stepless regulation
Noise: 68 dB(A)
Weight: 84 kg
Dimensions (mm): 1,120 × 1,120 × 1,950

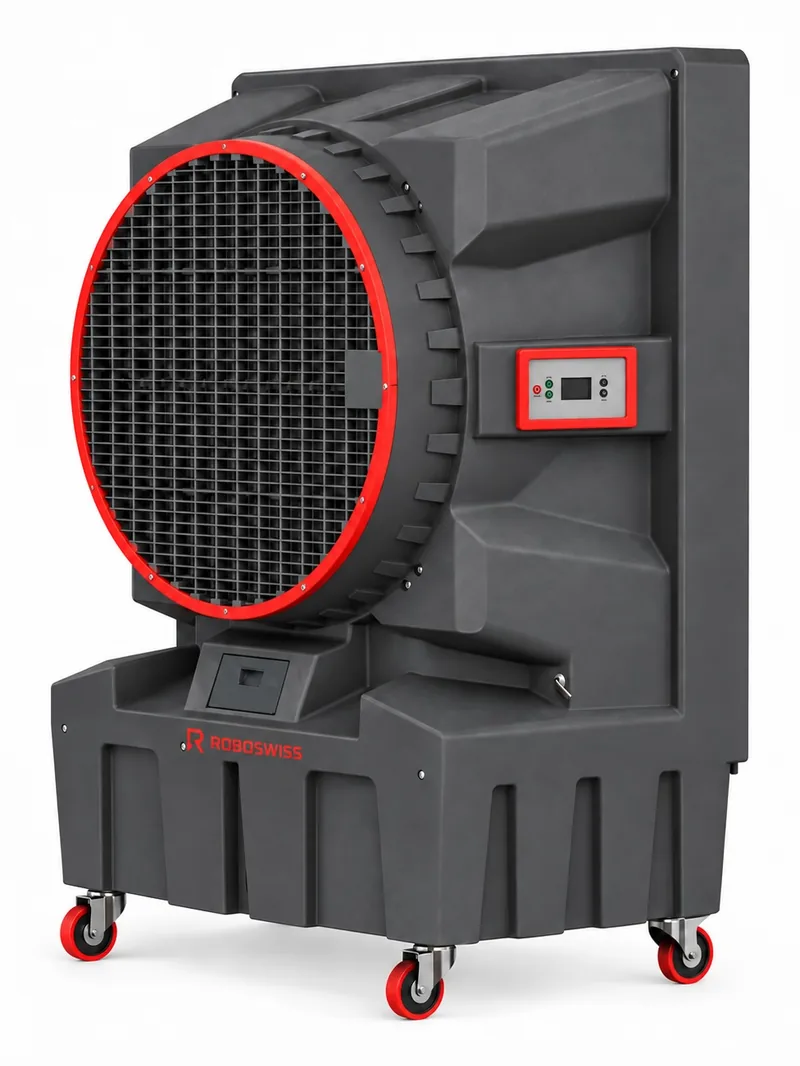

RS-A23C

23,000 m³/h

Power supply: 230 V single-phase — 60 Hz on the data sheet
Power: 1.1 kW
Tank: 130 l
Water use: not stated
Fan speeds: 3 speeds
Noise: 58 dB(A)
Weight: 50 kg
Dimensions (mm): 1,120 × 640 × 1,600

Figures from the manufacturer's data sheets and catalogue, confirmed with the quote. Two are still missing: the noise level and the number of fan speeds of the RS-A15C, absent from both documents. And the RS-A23C is listed there at 60 Hz while the Swiss grid runs at 50 Hz: the 50 Hz version is confirmed before any quote.

Fixed format

DiagramTypical layout: roof-mounted unit, supply ducts

Fixed unit

Nine sizes, installed on the roof or the façade.

For production halls, warehouses and agricultural buildings to be treated all season.

Fan: Axial or centrifugal
Air flow: 20,000 to 60,000 m³/h depending on size
Power: 1.1 to 15.5 kW
Power supply: 230 V or 400 V depending on the model, 50–60 Hz
Installation: Roof or façade, with supply ducts
Financing: ZKB leasing

Axial fan

Five sizes, from 20,000 to 36,000 m³/h.

The axial fan moves a large volume of air over a short distance: the unit sits above or beside the space to be treated, with short ducts. Depending on the model it discharges downwards, sideways or upwards.

Reference	Air flow	Power	Current	Tank	Water	Weight	Dimensions (mm)
RS-A20F	20,000 m³/h	1.1 kW	4.8 / 2.7 A	25 or 35 l	65 l/h	60 kg	1,120 × 1,120 × 1,050
RS-A25F	25,000 m³/h	1.5 kW	6.8 / 3.8 A	25 or 35 l	75 l/h	79 kg	1,120 × 1,120 × 1,250
RS-A30F	30,000 m³/h	2.2 kW	5.6 A	65 l	117 l/h	170 to 180 kg	1,500 × 1,500 × 1,350
RS-A35F	35,000 m³/h	3 kW	11.2 / 6.3 A	40 l	142 l/h	118 to 128 kg	1,350 × 1,350 × 1,350
RS-A36F	36,000 m³/h	3 kW	6.5 A	65 l	150 l/h	175 to 185 kg	1,500 × 1,500 × 1,350

The dimensions are those of the bottom-discharge model; top discharge adds 20 to 25 mm in height and side discharge 80 mm in width. Outlets from 670 × 670 to 800 × 800 mm. The RS-A20F, RS-A25F and RS-A35F have a plastic housing and run on 230 V or 400 V — the first current figure is at 230 V, the second at 400 V. The RS-A30F and RS-A36F are stainless steel, on 400 V three-phase.

Centrifugal fan

Four sizes, from 30,000 to 60,000 m³/h.

The centrifugal fan builds static pressure: it sends the air a long way, through a duct network serving several zones. Heavier and more powerful, for large volumes.

Reference	Air flow	Power	Current	Tank	Water	Weight	Dimensions (mm)
RS-A30R	30,000 m³/h	5.5 kW	11.6 A	65 l	117 l/h	300 kg	1,500 × 1,580 × 1,400
RS-A40R	40,000 m³/h	7.5 kW	15.4 A	80 l	220 l/h	450 kg	1,770 × 1,770 × 1,440
RS-A50R	50,000 m³/h	11 kW	24.5 A	100 l	260 l/h	585 kg	2,090 × 1,970 × 1,700
RS-A60R	60,000 m³/h	15.5 kW	30.3 A	100 l	380 l/h	650 kg	2,090 × 1,970 × 1,700

Stainless steel, 400 V three-phase. Outlets from 620 × 570 to 926 × 834 mm. The RS-A50R and the RS-A60R share the same housing: the fan and motor are what differ.

Covered areas are not published. The manufacturer does give one per model, but two units of 30,000 m³/h are credited with different areas — 150 to 200 m² for one, 200 to 300 m² for the other. And the same unit does not treat the same area in a closed warehouse and under a marquee. They are worked out during the survey, from the air flow and the water consumption of the model chosen.
